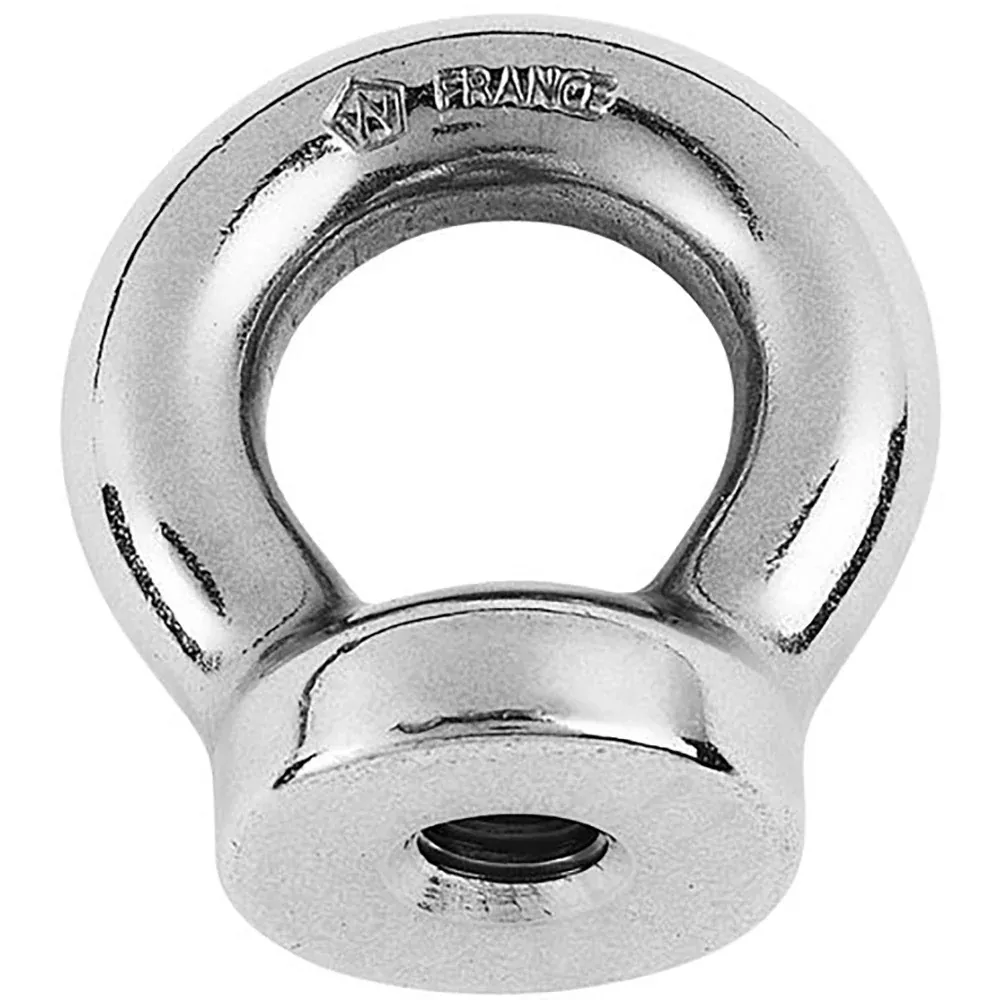

8mm Eye Nut – 1/2″ Diameter
Features:
- A complete range of single-piece forged products for fastenings applications
- Outstanding breaking loads
- Available in different sizes
Applications:
- Various fastening applications
- Towing application
- Waterskiing lines attachment
Specifications:
- Materials: 316L stainless steel grade
- Breaking load: (lb) 4850 / (kg) 2200
- Weight: (lb) 0.044 / (g) 20
Dimensions:
- A: (inch) M8 x125 / (mm) M8 x125
- B: (inch) 33/64″ / (mm) 13
- C: (inch) 1 1/16″ / (mm) 27
- D: (inch) 15/64″ / (mm) 6
- E: (inch) 43/64″ / (mm) 17
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Features & Specifications
- Manufacturer Part Number: 6334
- UPC: 3587790063349
- Dimensions: 1 × 1 × 0
- Category: Sailing | Accessories
