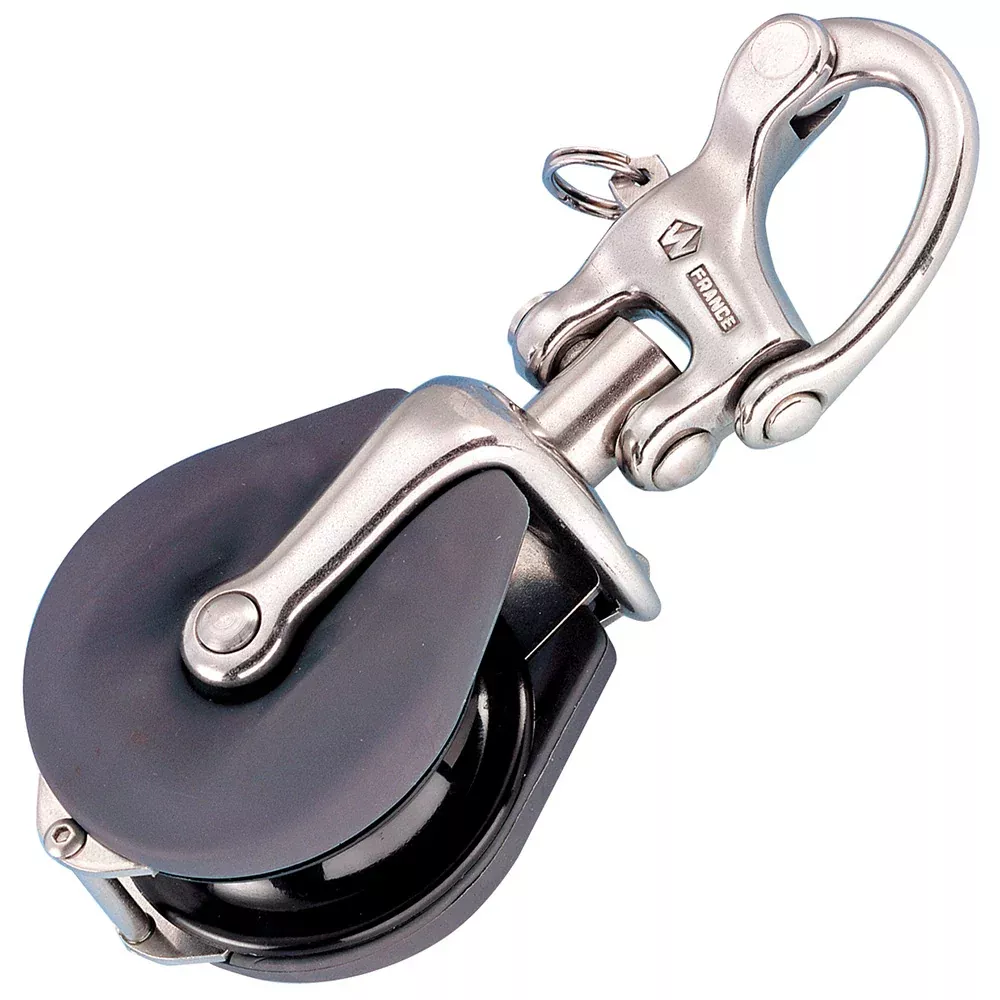

Snatch Block with Snap Shackle – Max Rope Size 18mm (23/32″)
Features:
- Free rotation thanks to snap shackle
- Very strong closing system
- Easy opening by simply pulling on the plunger pin
- Shock and scratch-resistant thanks to the elastomer molded cheeks
Applications:
- Changing sheets
- Spinnaker sheet deflector blocks
Materials:
- HR 17.4 PH forged stainless steel arm
- Elastomer molded cheeks
- Composite sheave
Specifications:
- Rope size: (inch) 23/32″ / (mm) 18
- Length: (inch) 6 7/64″ / (mm) 155
- Width: (inch) 2 21/64″ / (mm) 59
- Thickness: (inch) 1 59/64″ / (mm) 49
- Working Load: (lb) 2640 / (kg) 1200
- Breaking Load: (lb) 5510 / (kg) 2500
- Weight: (lb) 0.913 / (g) 414
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
*Sold as an Individual
Features & Specifications
- Manufacturer Part Number: 35500
- Dimensions: 7 × 3 × 2
- Category: Sailing | Blocks
