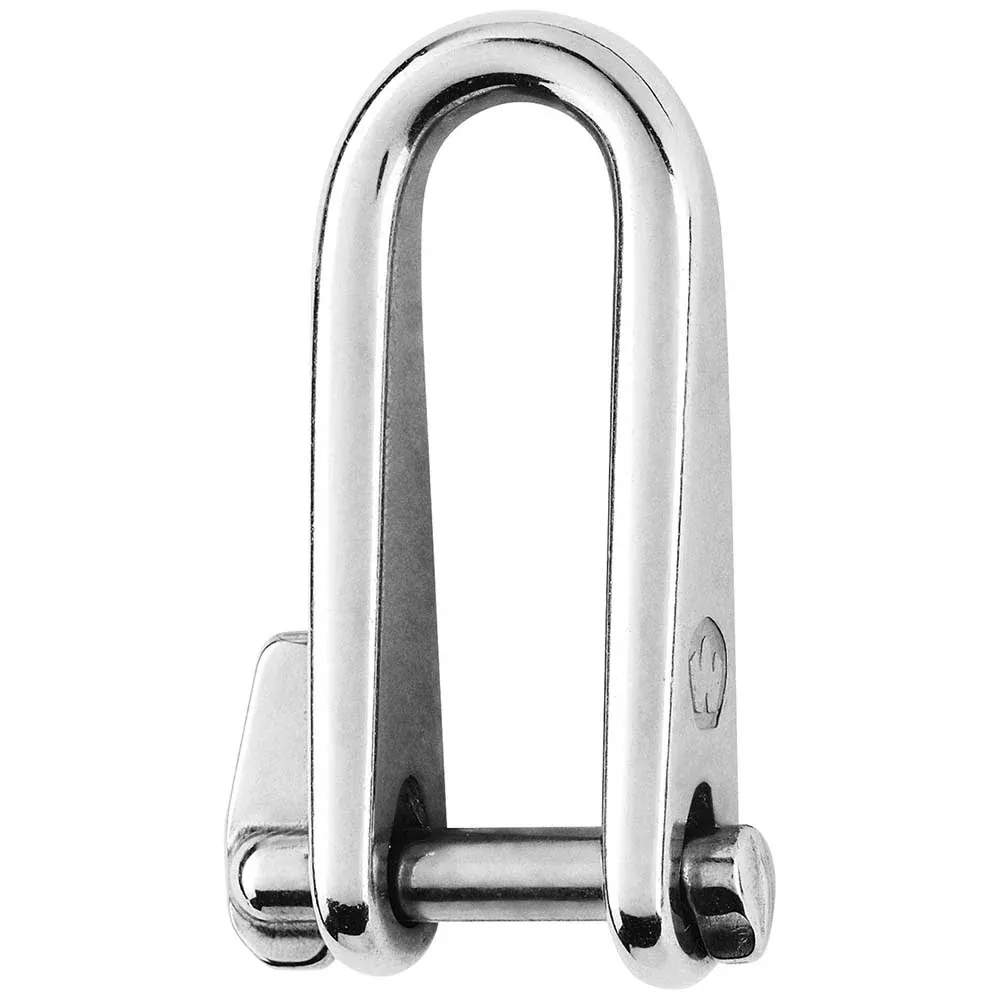

Key Pin Shackle – Diameter 8mm – 5/16″
Features:
- Key pin shackle forged in grade 316L stainless steel
- Opening and closing is done simply by rotating the pin half a turn
- No risk to lose the pin as it remains attached
- Outstanding working and breaking loads
Applications:
- Perfect product for halyards or applications requiring to open /close the shackle often
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1760
- Breaking load (lb) 5070
- Weight (lb) 0.267
Dimensions (see 2nd image):
- A (inch) 2-21/64″
- B (inch) 53/64″
- C (inch) 5/16″
- D (inch) 43/64″
- D diameter (inch) 5/16″
- E (inch) 15/64″
- F (inch) 3-7/64″
- G (inch) 1-59/64″
Features & Specifications
- Manufacturer Part Number: 1434
- UPC: 0768536014341
- Dimensions: 6 × 2 × 1
- Category: Sailing | Shackles/Rings/Pins
