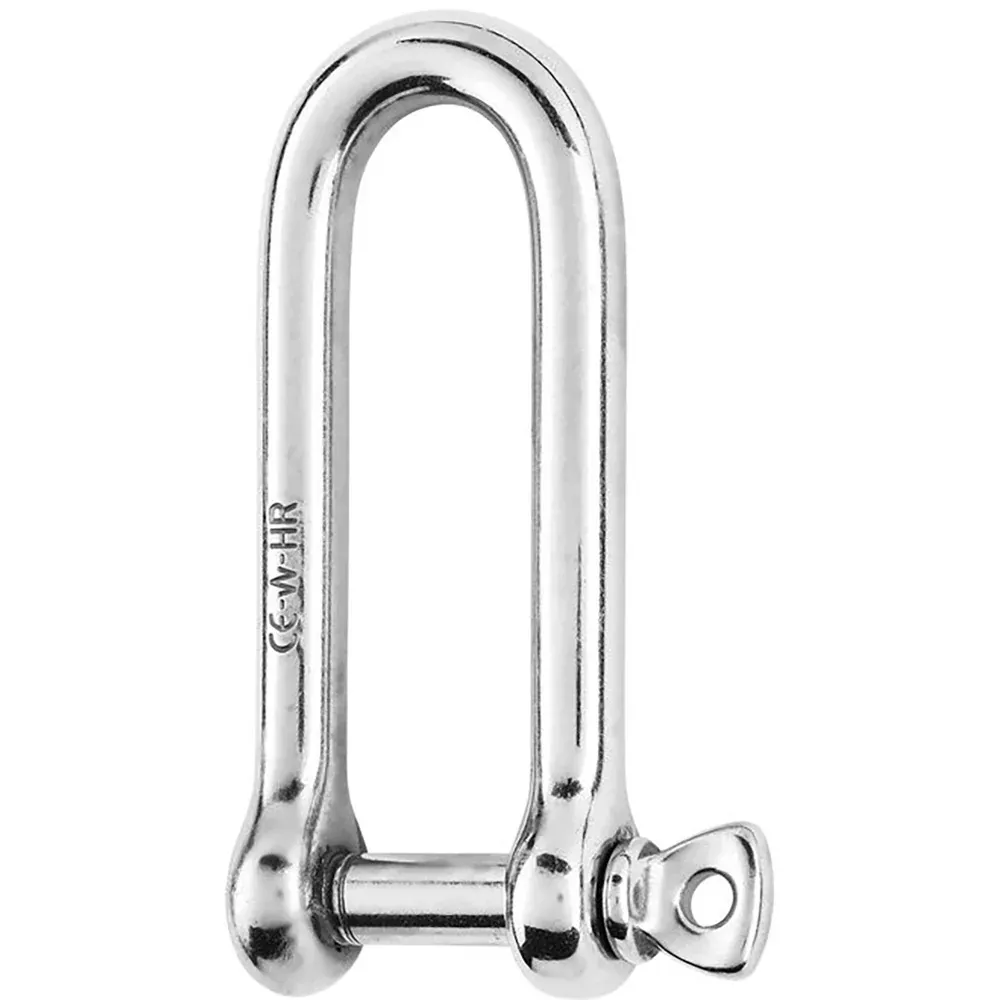

HR Long D Shackle – 10mm Diameter – 25/64″
Features:
- Forged long shackle in HR stainless steel grade (17,4 PH)
- Outstanding working and breaking load
- An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
- WLL: only for industrial applications (lifting i.e…)
- CE marking
Applications:
- Applications requesting high loads
- Standard applications of the shackle
- Attachment applications: blocks, head …
- Do not use it for mooring applications
Specifications:
- Materials: HR 17.4 PH stainless steel grade
- Working load: (lb) 5820 / (kg) 2640
- WLL: (lb) 2640 / (kg) 1200
- Breaking load: (lb) 13220 / (kg) 6000
- Weight: (lb) 0.362 / (g) 164
Dimensions:
- A: (inch) 3 5/64″ / (mm) 78
- B: (inch) 25/32″ / (mm) 20
- D diameter: (inch) 25/64″ / (mm) 10
Caption:
- Working Load (WL): For nautical applications
- Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
- High Resistance (HR)
*Sold as an Individual
Features & Specifications
- Manufacturer Part Number: 11215
- UPC: 0358779011216
- Dimensions: 6 × 2 × 1
- Category: Sailing | Shackles/Rings/Pins
