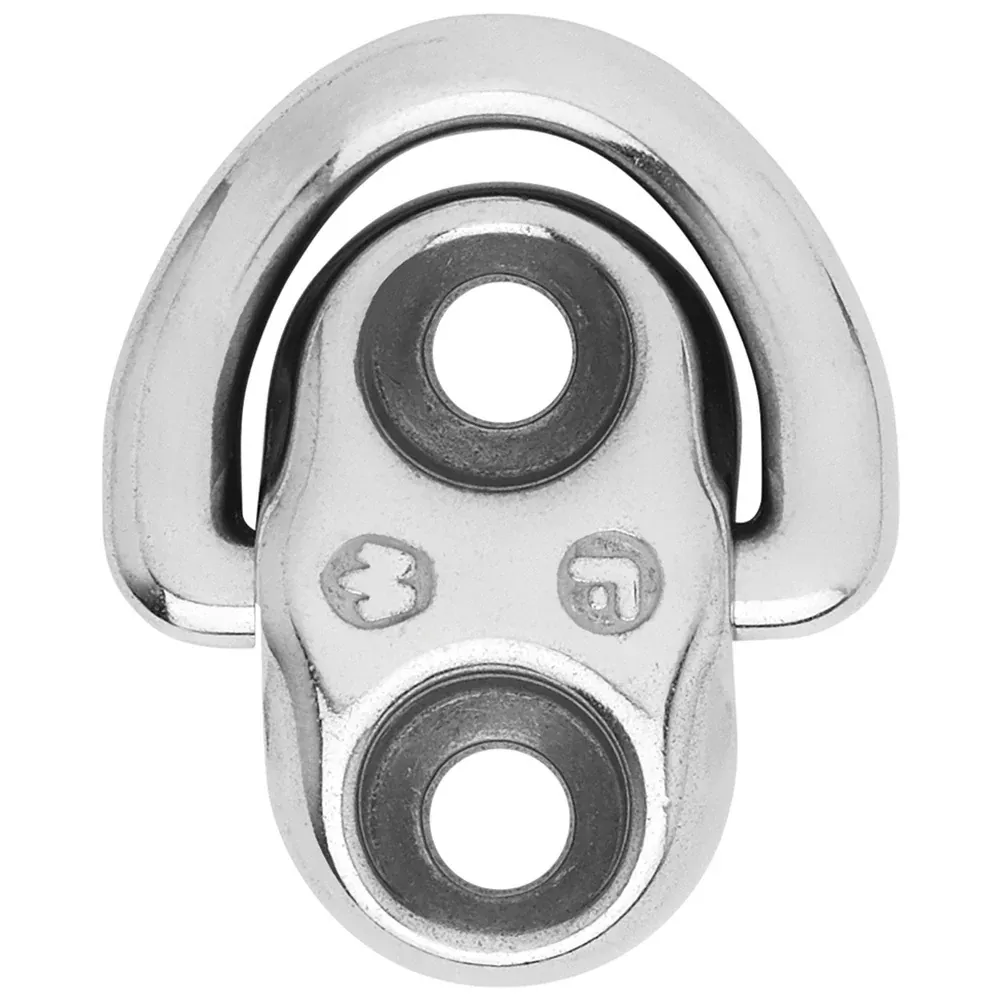

Wichard Folding Pad Eye – 6mm Diameter (15/64″) – 2 Fixed Holes [6684W

Folding Pad Eye – 6mm Diameter (15/64″) – 2 Fixed Holes

Features:

• They are 100% safe and highly resistant to corrosion
• Fully drop-forged product with outstanding working and breaking loads regardless of the angle of the load
• Modern and optimized design to suit the aesthetics of modern boats
• They can be folded down to minimize the risk of injuries
• The silicon pad eliminates moist and unpleasant vibrations
• Modern design

Applications:

• Fastening applications (stay, blocks, jib tack point, lifeline, etc…)

Specifications:

• Materials: 316L stainless steel grade
• Working Load: (lb) 1650 / (kg) 750
• Breaking Load: (lb) 3520 / (kg) 1600
• Weight: (lb) 0.123 / (g) 56

Dimensions:

• A: (inch) 1 37/64″ / (mm) 40
• B: (inch) 59/64″ / (mm) 23.4
• C: (inch) 19/32″ / (mm) 15
• d diameter: (inch) 9/32″ / (mm) 7
• D diameter: (inch) 15/64″ / (mm) 6
• E: (inch) 1 37/64″ / (mm) 40

Caption:

• Working Load (WL): For nautical applications
• Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual
