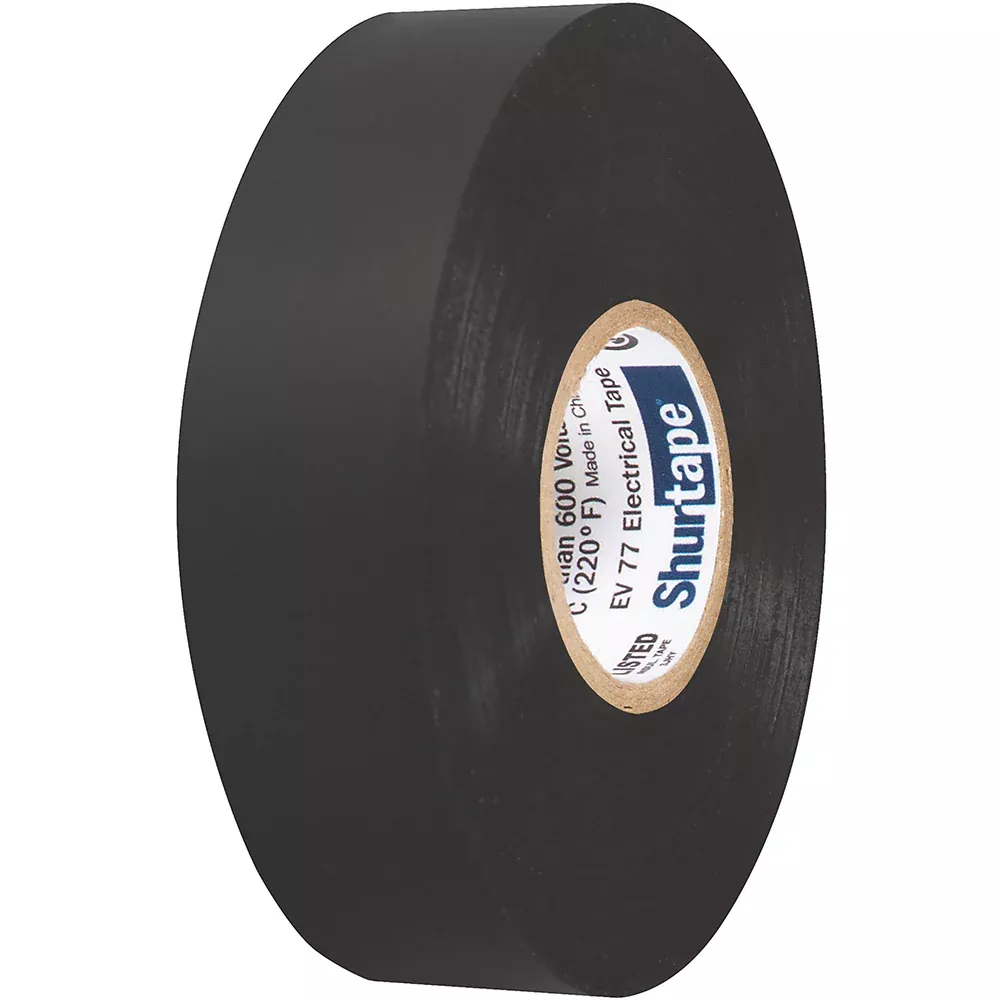

EV 077B Professional Grade Black Electrical Tape for Insulating & Splicing – 3/4″ x 66′ – 10-Pack
Professional grade, 7.0 mil, all-weather vinyl insulating tape used for electrical and mechanical protection in temperatures ranging from 0 F to 220 F. UL Listed and CSA Approved, EV 77B black electrical tape is lead-free, flame retardant, and is engineered with a polymeric backing construction, as well as a specialized method of bonding the adhesive to the vinyl backing, which allows the tape to be highly conformable and deliver a moisture-tight seal, even in extreme temperatures.
Features:
- 7.0 mil, professional-grade electrical tape
- High tensile strength
- High performance in a wide temperature range
- Resistant to UV, oils, acids, alkalies, corrosive chemicals, and water
- Flame retardant
Technical Specifications:
- Tape Width – 3/4″
- Roll Length – 66′
- Adhesive – Non-corrosive, rubber-based
- Adhesion to Stainless Steel – 28 oz/in width
- Dielectric Breakdown – 10,000V
- Dielectric Strength – 1,429V/mil
- Elongation – 300%
- Service Temperature Range – 0°F-220°F
- Tensile – 20 lbs/in width
- Thickness – 7.0 mils
- Color – Black
Features & Specifications
- Manufacturer Part Number: 104706
- UPC: 0040074025813
- Dimensions: 10 × 4 × 4
- Category: Boat Outfitting | Adhesives/Sealants/Tapes
