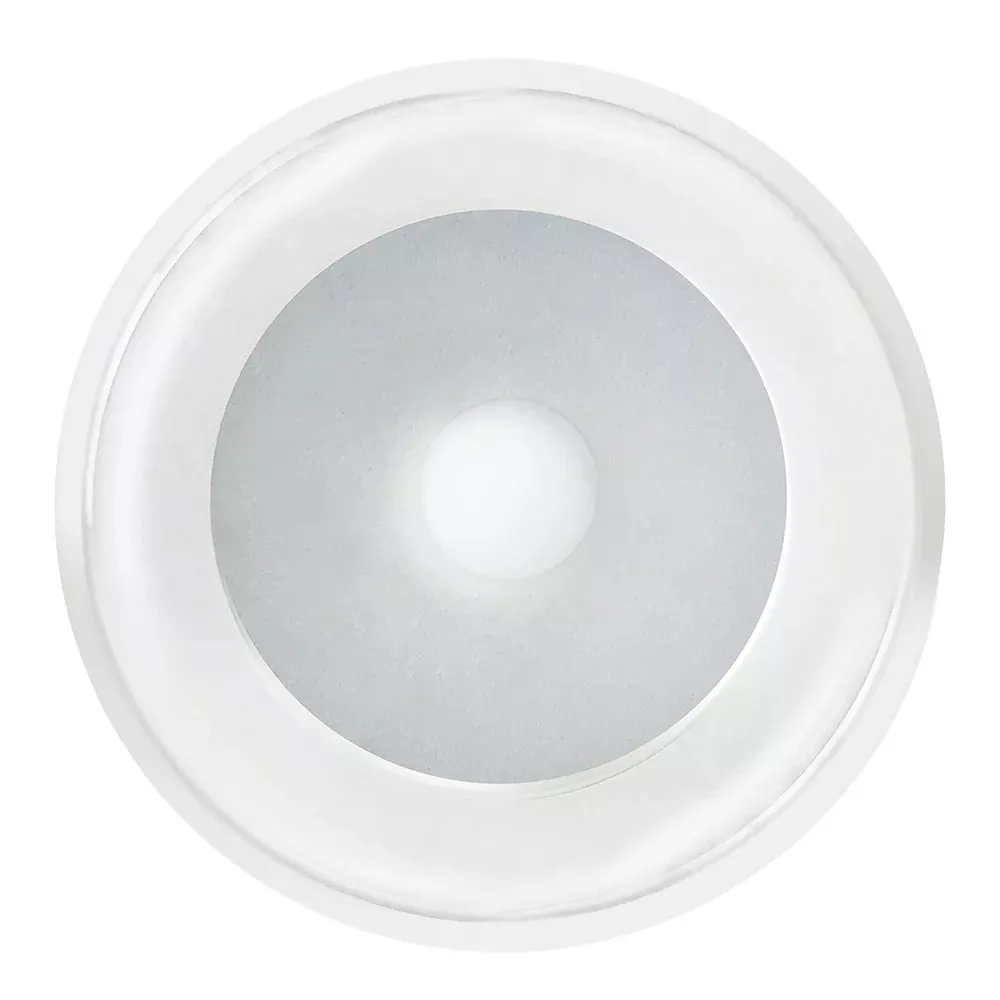

Shadow-Caster Downlight – White Housing – Warm White [SCM-DLXS-WW-WH]

Downlight – White Housing – Warm White

This Shadow-Caster™ large marine LED downlight is warm white and is perfect for lighting overhead areas of the interior and exterior of your boat or yacht. At 3″ overall diameter, its wide-angle spread of light and all-glass reveal make this the ideal light for T-Tops, cabins, towers, and more.

Features:

• LED color is warm white
• 120-degree viewing angle
• High-efficiency switch mode power supply
• Waterproof low-profile aluminum housing
• All-Glass reveal provides a modern look
• White finish
• Durable glass lens
• 3-Year Warranty

Specifications:

• 300-lumen output (white versions)
• 120-degree beam angle
  • 3-watt power draw
  • 10-30 volts input
  • 250mA at 12 volts, 125mA at 24 volts
  • 6000 Kelvin cool white color temperature
  • 3000 Kelvin warm white color temperature
  • 3 in. (76mm) OD, 0.175 in. (4mm) mounting height
  • 2 in. (51mm) mounting hole
  • IP67 waterproof design
  • 18 in. (45cm) lead wire

Includes:

• Down light
• Flush mounting bracket
• (3) 4 X 0.5 in. (12.7mm) SS316PH screws

This product may not be returned to the original point of purchase.Please contact the manufacturer directly with any issues or concerns.

Specifications:

• Bulb Type: LED
• Bulb Watts: 3
• Housing: White
• LED Color: Warm White
• LED: Yes
• Voltage – Input Range (Volts): 12/24v
• Box Dimensions: 3″H x 4″W x 4″L WT: 0.25 lbs
• UPC: 850024342385

Quick Guide (pdf)
