Sea Brackets Large Offset Trolling Motor Plate f/Garmin Kraken [SEA230

Large Offset Trolling Motor Plate for Garmin Kraken

The Sea Brackets Large Offset Trolling Motor Mounting Plate, designed for the Garmin Quick Release Plate System, offers a robust and reliable solution for installing any Force Kraken Trolling motor. Crafted from 6061 T6 aluminum, each plate is primed, powder-coated, and UV-protected for exceptional durability against the elements. Whether for port or starboard installation, these plates boast clean, accurately gauged holes for seamless bolt engagement.

Suggested Hardware:

• 316L stainless steel hardware is recommended for rust prevention
• Mounting hardware is included with Garmin’s Quick Release Plate System

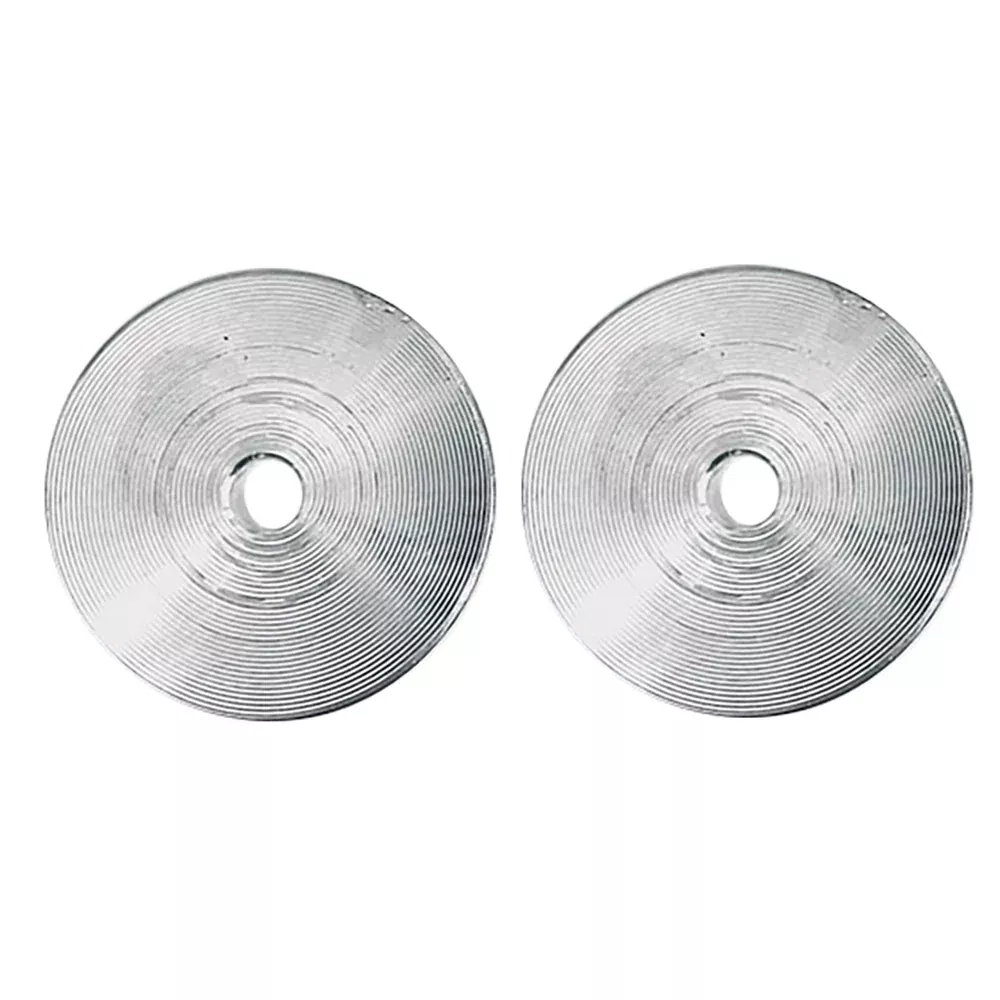

• Backing disk from Sea Brackets or an alternative backing support system
• 1/4–20 flat-head Phillips machine screws, fender washers, and lock nuts
• 5/16–18 Flat-head Phillips machine screws, fender washers, and lock nuts

Dimensions:

18.5″ x 15.5″ x 1/2″

Note: Hardware length is dependent on the thickness of the hull, backing hardware, and other various components.
