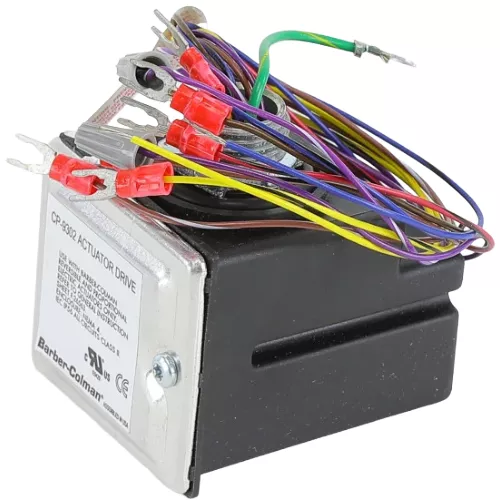

Schneider Electric (Barber Colman) CP-9302 Actuator Drive, 4–20mA Input

The Schneider Electric (Barber Colman) CP-9302 is a precision actuator drive module engineered for demanding building automation and HVAC control applications. Designed to accept a current-based input signal, this drive delivers accurate, repeatable positioning performance in commercial and industrial environments.

Input Signal & Control Specifications

• Input Signal Type: Current (4 to 20mA DC)
• Start Point: 4mAdc
• Input Span: 16mAdc
• Deadband: 3% of Input Span

Power Supply

• Power is supplied directly from the actuator — no separate power wiring required

Key Features & Benefits

• Industry-standard 4–20mA current input for seamless integration with building automation systems (BAS) and DDC controllers
• Tight 3% deadband minimizes hunting and ensures stable, energy-efficient actuator positioning
• Actuator-powered design simplifies installation and reduces field wiring complexity
• Compatible with Barber Colman / Schneider Electric actuator platforms for reliable OEM and retrofit applications
• Suitable for valve and damper actuator control in commercial HVAC systems

Applications

• Commercial building automation and DDC control systems
• Valve and damper actuator positioning
• HVAC air handling units (AHUs) and hydronic systems
• Retrofit and replacement of existing Barber Colman actuator drive modules

The CP-9302 is the dependable choice for HVAC professionals who require accurate current-input actuator control with minimal installation complexity. Backed by the Schneider Electric (Barber Colman) legacy of quality, this drive module integrates seamlessly into modern and legacy control architectures.
