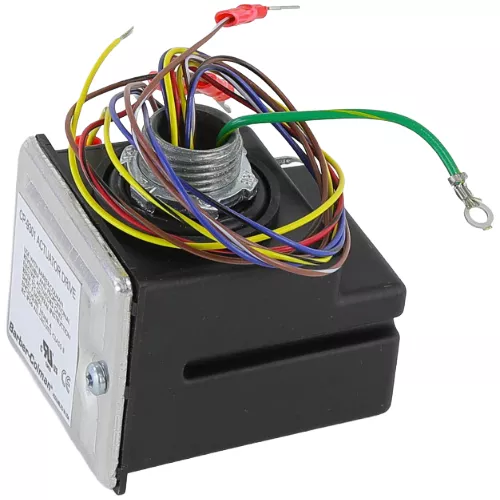

The Schneider Electric (Barber Colman) CP-9301 is a precision actuator drive module engineered for reliable, responsive control in commercial HVAC and building automation applications. Designed to accept a 6 to 9 Vdc input signal, this drive delivers accurate positioning performance with a tightly controlled deadband and a compact input span — making it an ideal solution for damper and valve actuator systems where precise modulation is critical.
Power for the CP-9301 is supplied directly from the actuator itself, simplifying wiring and reducing the need for additional power supply infrastructure. This self-powered design streamlines installation and minimizes potential points of failure in the control circuit.
Key Specifications
- Input Signal Range: 6 to 9 Vdc
- Input Span: 3 Vdc
- Start Point: 6 Vdc
- Deadband: 3% of Input Span
- Power Source: Supplied directly from the actuator
- Brand: Schneider Electric (Barber Colman)
- SKU: CP-9301
Features & Benefits
- Precise 3 Vdc input span for accurate modulating control
- 3% deadband minimizes actuator hunting and wear
- Actuator-powered design eliminates need for separate power supply
- Compatible with Barber Colman actuator systems
- Engineered for commercial HVAC and building automation environments
- Reliable Schneider Electric quality and engineering
Applications
- Commercial HVAC damper and valve actuator control
- Building automation system (BAS) integration
- Air handling unit (AHU) modulating control
- VAV and zone control applications
