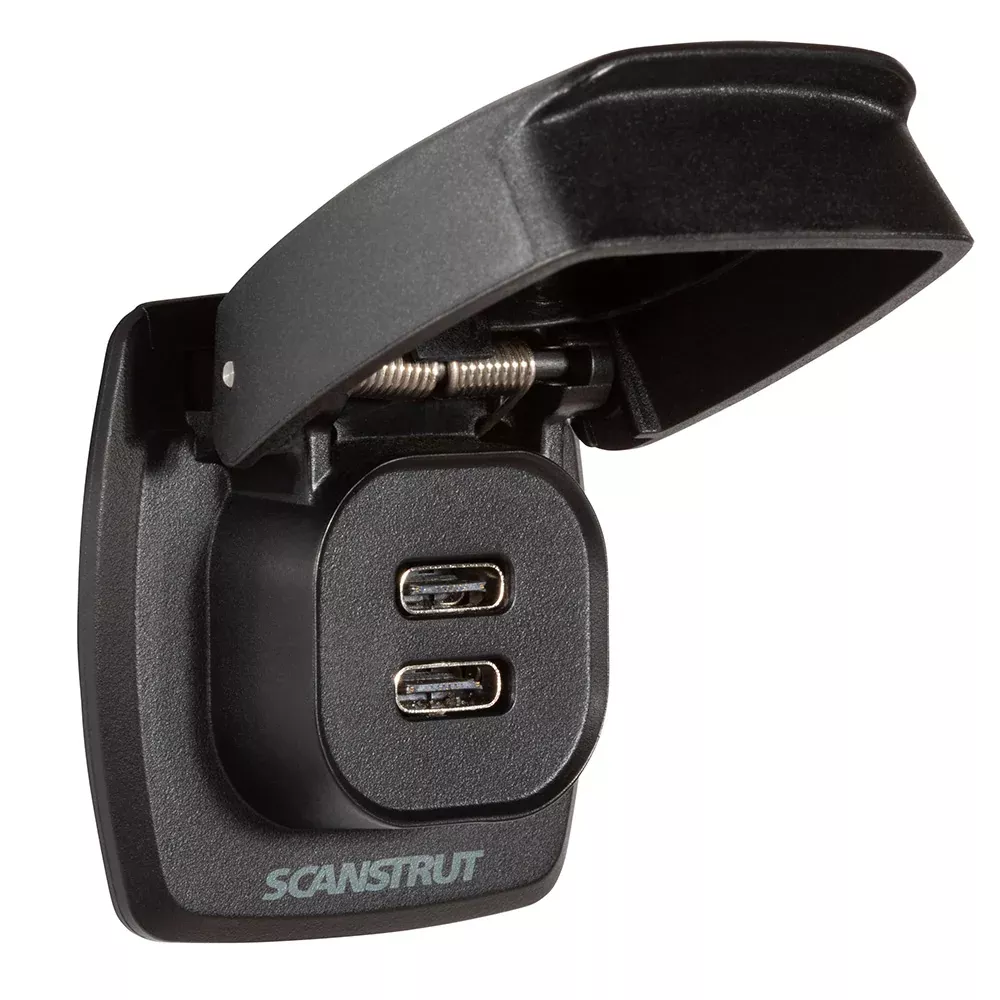

Scanstrut Flip Pro Max – Dual USB-C Charge Socket [SC-USB-F3]

Flip Pro Max – Dual USB-C Charge Socket

Designed for use with either a 12V or 24V input and features 2x 60W USB-C charging ports. It will charge at 36W on a 12V system or up to 60W on a 24V system. This makes it perfect for charging modern laptops, large tablets, phones, and any other USB-C-powered devices onboard.

Features:

• When not in use, the spring-loaded cap remains tightly closed, protecting the ports from the elements
• Red LED running light

Universal:

• Universal fit for any USB-C connectors
• Fast charge (60W max) up to 2 devices at a time

Installation:

• Easy Install, using a Ø32mm (1.25 in.) hole saw
• Supplied as standard with an optional front fit bezel

Marine Ready:

• IPX4 waterproof with the cover closed
• UV resistant
• 316 stainless steel hinge and spring

Key Information:

• To maximize charge performance, use the cable supplied with your tablet, phone, etc. (C to C, or C-lightning)
• Phones charge at the same speed on either a 12V or 24V system, but a 24V system must be used to get the full 60W output suitable for laptops

Specifications:

• IP Rating: IPX4 waterproof when lid is closed
• Input Voltage: 10-30V DC (12/24V System)
• Input Current Max: 6A (10A fuse recommended)
• Standby Power Draw: 0.01W
• USB – C Output: 60W max on a 24V system / 36W max on a 12V system

Quick Guide (pdf)
