1.5″ Ball Mount w/2.5″ Round Base, Short Arm & 1.5″ x 3″ Plate f/Humminbird Helix 5 Only

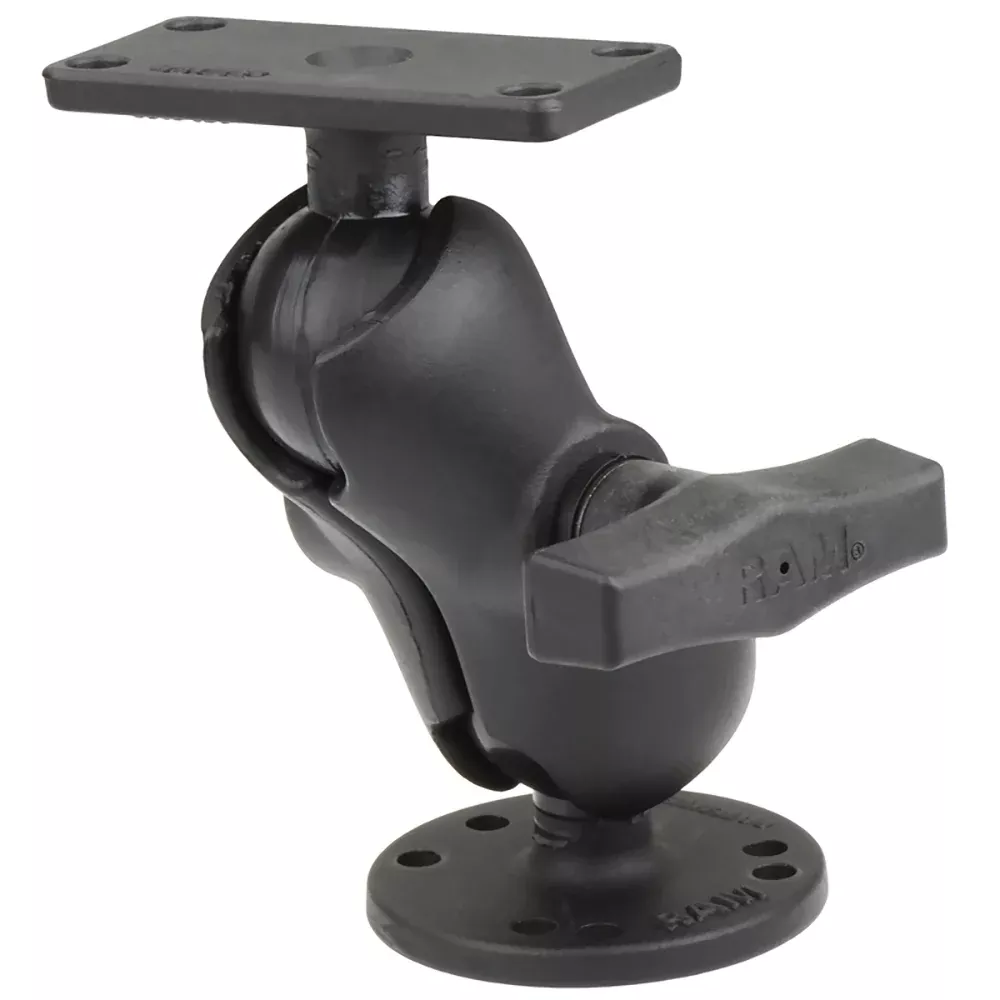

The RAM-202-153-B-202U consists of a round 2.5″ diameter round base (Universal AMPs Hole Pattern), short double socket arm and 1.5″ x 3″ rectangular base. The rectangular base contains four holes with a center to center pattern of 1″ x 2.5″. For most applications, mount will support up to ten pounds.
Features:
- Compatible Devices: Humminbird Helix 5
- Center to Center Hole Pattern: 1″ x 2.5″
- Weight Capacity: 10 lbs.
- Overall Height: 5.225″
- Material: Powder Coated Marine Grade Aluminum
- Ball Size: 1.5″ Rubber Ball Size
- Note: The “U” in the part number reflects product packaged in poly bag. Hardware for mounting to device not included with purchase.
- Weight: 0.19 lbs.
Features & Specifications
- Dimensions: 8 × 3 × 2
- Category: Ram Mount Store | Marine Electronics Mounts
Accessories
- 52540|53432|53435
- RAP-403U|RAP-S-KNOB5U|RAP-S-KNOB5-GU
