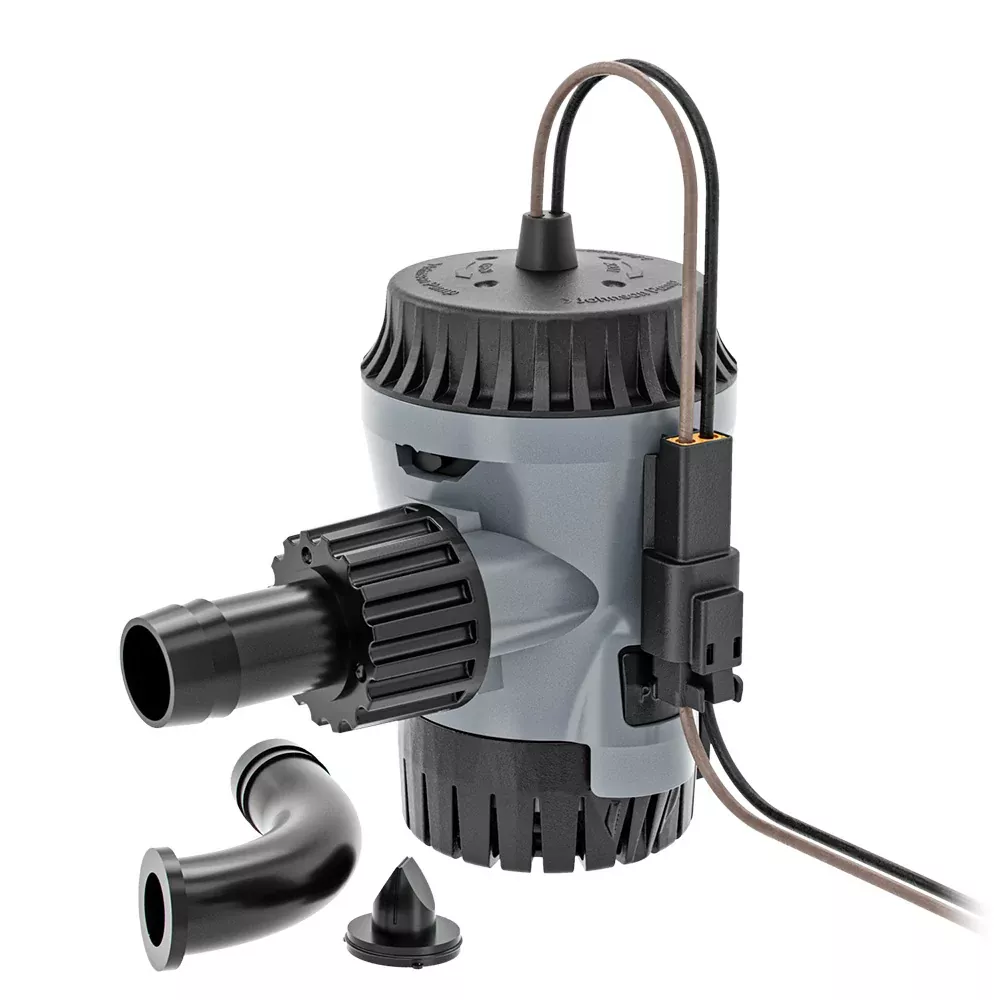

Johnson Pump Aqua Void Electro-Magnetic Combo 800 GPH Bilge Pump – 12V

Aqua Void Electro-Magnetic Combo 800 GPH Bilge Pump – 12V

With its industry-first quick-change motor connection and new reinforced click-in basket, this bilge pump simplifies cleaning and installation, and it’s convenient and efficient. Its enhanced motor ensures reliability and performance in any condition. Experience worry-free boating with Aqua Void.

This pump is combined with a non-clogging electro-magnetic float switch for automatic operation. The switch reacts to the level of water present in the bilge and automatically activates and deactivates the pump.

Experience the Industry-First Quick-Change Motor Connection

Johnson Pump’s groundbreaking product features a quick-change motor connection for hassle-free cartridge motor changes or capacity upgrades.

Take Control of the Boating Experience with Unparalleled Convenience

The Aqua Void Cartridge Bilge Pump is designed with single-handed access, perfect for tight bilge spaces. The pump body is easy to install or remove, and an innovative reinforced click-in basket simplifies installation, cleaning, or inspection.

Enjoy Enhanced Efficiency and Higher Flow Rate

Powered by an enhanced motor and high-flow impeller, the Aqua Void achieves increased efficiency and a higher flow rate while conserving energy consumption.

Trust in Reliable Performance Under Demanding Conditions

Johnson Pump Marine is renowned for its industry-leading reliability. The Aqua Void lives up to this reputation with its robust construction and meticulous engineering.

Enjoy a worry-free time on the water and experience Reliability On Board. The Aqua Void Bilge Pump is a game-changing solution that sets a new standard in bilge pumps. Don’t miss this opportunity to enhance the boating experience. Get the Aqua Void today!

Features:

• Heightened efficiency with an increased flow rate – high-flow impeller design
• Quick-change motor connection enjoy quick and hassle-free cartridge motor changes or capacity upgrades. Industry-first and only cartridge motor pump with included harness connection requiring no cutting and splicing of wires
• Water-cooled motor for long service intervals
• Compact, all-in-one motor/Impeller unit with stainless steel (316) Shaft
• No tools are needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
• Easy-to-install dura-port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
• Include both a straight and a 90-degree smooth elbow dura-port as well as a removable check valve
• Meets the international standard, ISO 8849 marine
• Molded T-Slot – Easy Installation with Switches
  • This cartridge pump combines an electro-magnetic float switch

Specifications:

• Pump Size: 800 GPH
• Capacity Straight (12V): 785 GPH (50 I/min)
• Voltage: 12V
• Amp: 3.7A
• Fuse: 5A
• Hose Connection: 3/4 in.
• Wire Size: 16 GA, TAC
• Weight: 17.3 oz (0.49 kg)
• Body: ABS
• Dura Port: PA66/GF – Nylon
• Shaft: 316 Stainless Steel
• Shaft Seal: Nitrile Rubber
• Motor Cartridge: PC-ABS
• Pump Dimensions (W x H x L): 3.88 x 4.69 x 6.17 inches (99 x 120 x 157 mm)

Specifications:

• Gallons Per Hour: 800 GPH
• Operation: Automatic
• Outlet Size: 3/4″
• Type: Electric
• Volts: 12v
• Box Dimensions: 4″H x 6″W x 6″L WT: 1.35 lbs
• UPC: 7330717017965

Quick Guide (pdf)
