8mm High Resistance “D” Shackle
Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. High-Resistance (HR) shackles are forged in 17-4PH stainless steel to handle high loads. They have an “HR” imprint for easy identification.
Specifications:
- Shackle pin: 8mm / 5/16in
- Weight: 56.5g / 2oz
- Maximum working load: 2330kg / 5130lb
- Breaking load: 4650kg / 10260lb

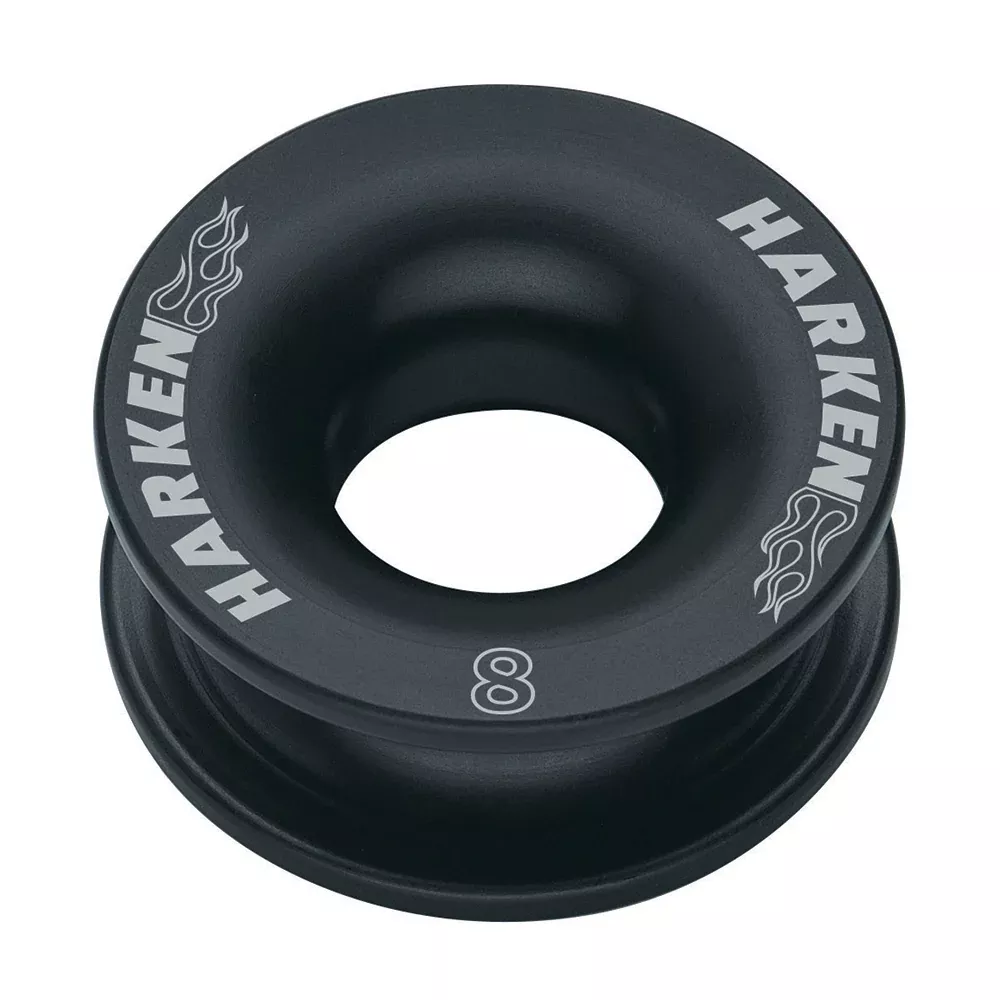

![Harken 8mm Lead Ring [3269]](https://www.greathardwarehub.com/wp-content/uploads/2026/09/harken-8mm-lead-ring-3269.webp)

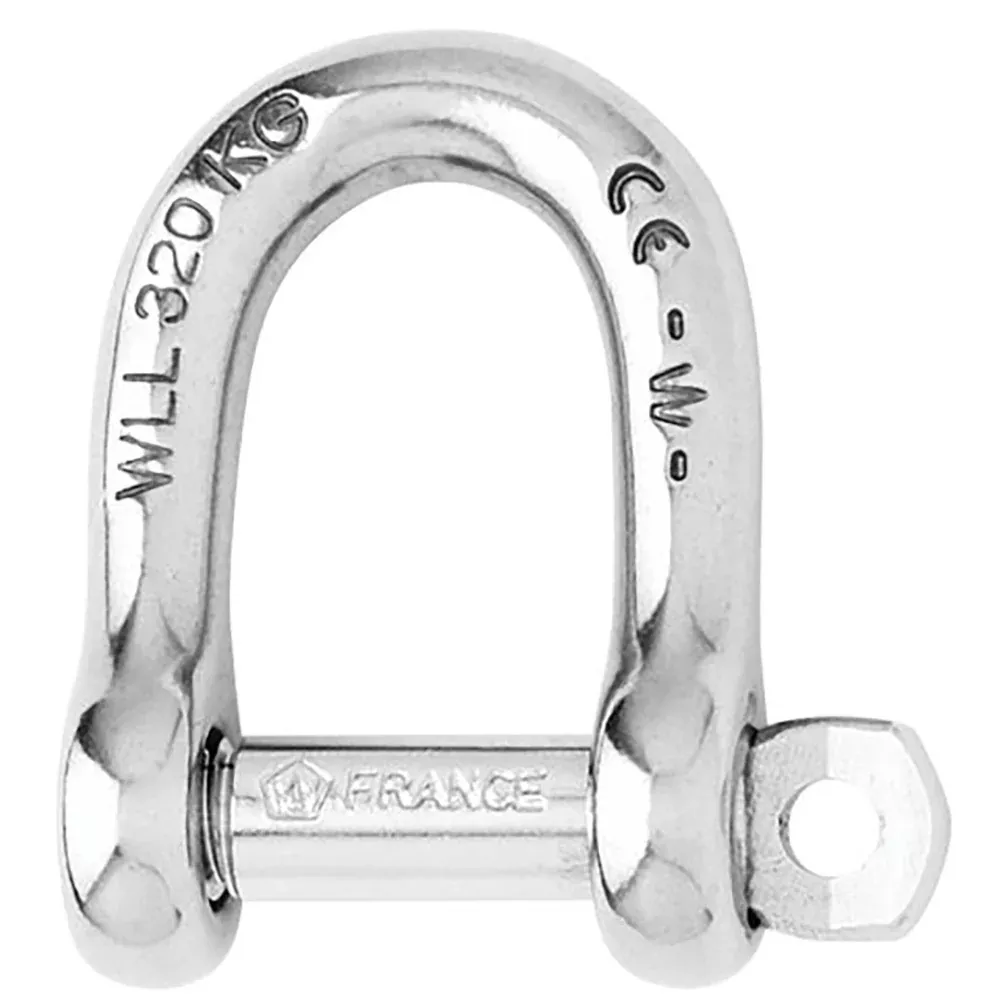

![Wichard Self-Locking D Shackle - 12mm Diameter - 15/32" [1206W]](https://www.greathardwarehub.com/wp-content/uploads/2026/09/wichard-self-locking-d-shackle-12mm-diameter-15-32-1206w.webp)
![Wichard Not Self-Locking D Shackle - 14mm Diameter - 9/16" [1207W]](https://www.greathardwarehub.com/wp-content/uploads/2026/09/wichard-not-self-locking-d-shackle-14mm-diameter-9-16-1207w.webp)

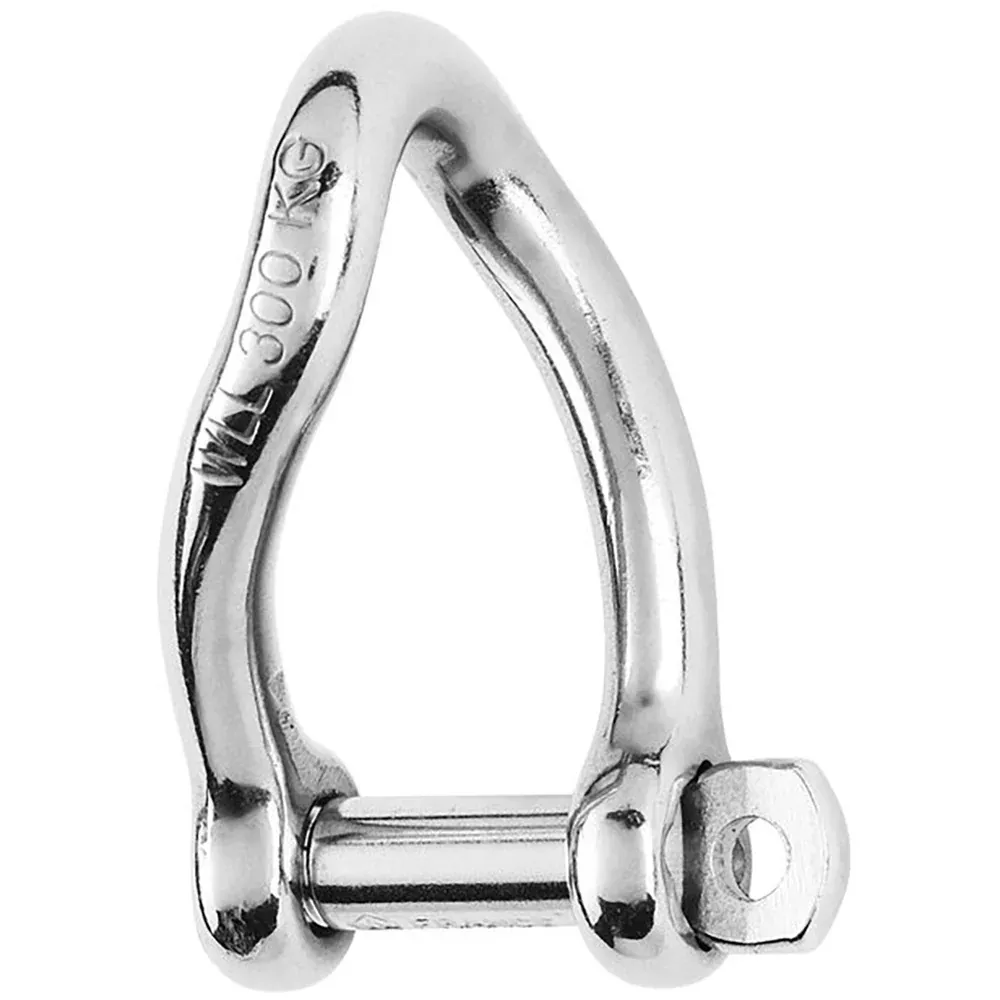

![Wichard Self-Locking Twisted Shackle - 10mm Diameter - 13/32" [1225W]](https://www.greathardwarehub.com/wp-content/uploads/2026/09/wichard-self-locking-twisted-shackle-10mm-diameter-13-32-1225w.webp)

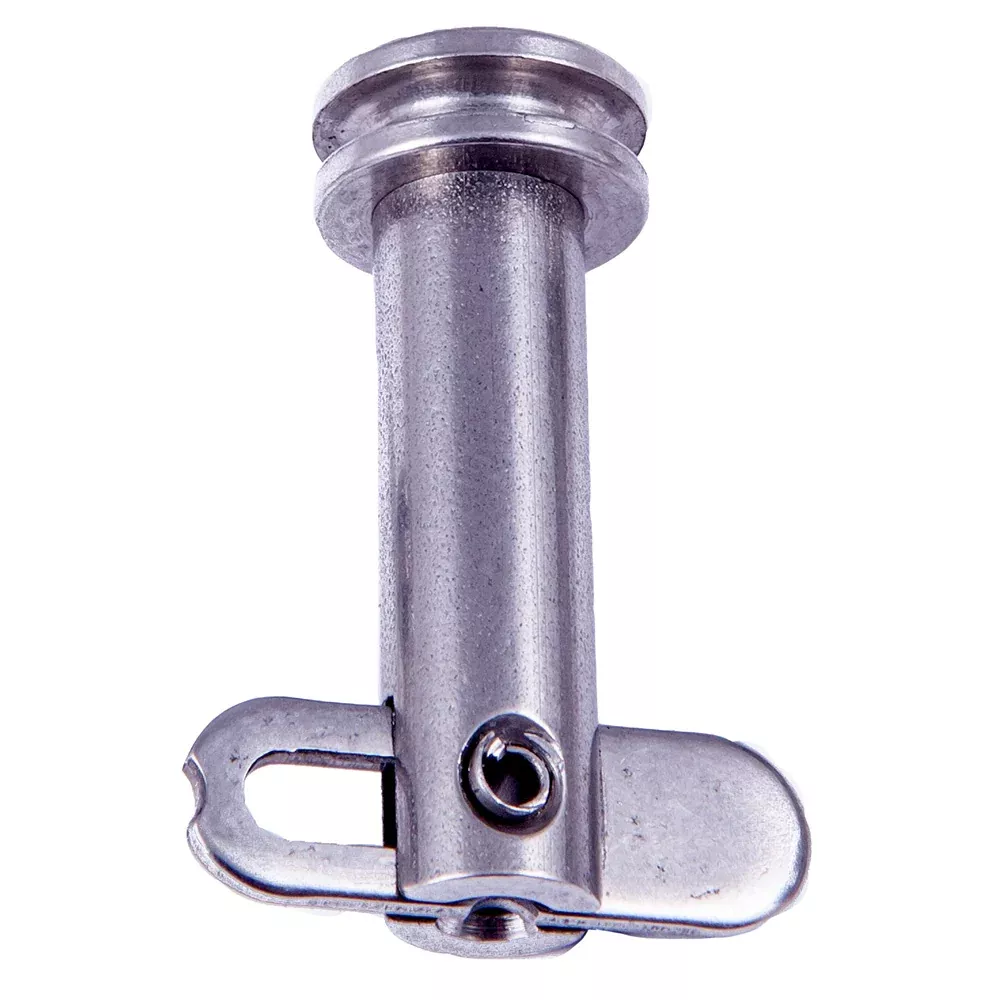

![SeaSure Drop Nose Pin 8mm x 20mm [36.08.20CRD]](https://www.greathardwarehub.com/wp-content/uploads/2026/09/seasure-drop-nose-pin-8mm-x-20mm-36-08-20crd.webp)
