Egis XD Flex 1 Single RelayACR wo Knob 6Pin DTM Connector 88101200

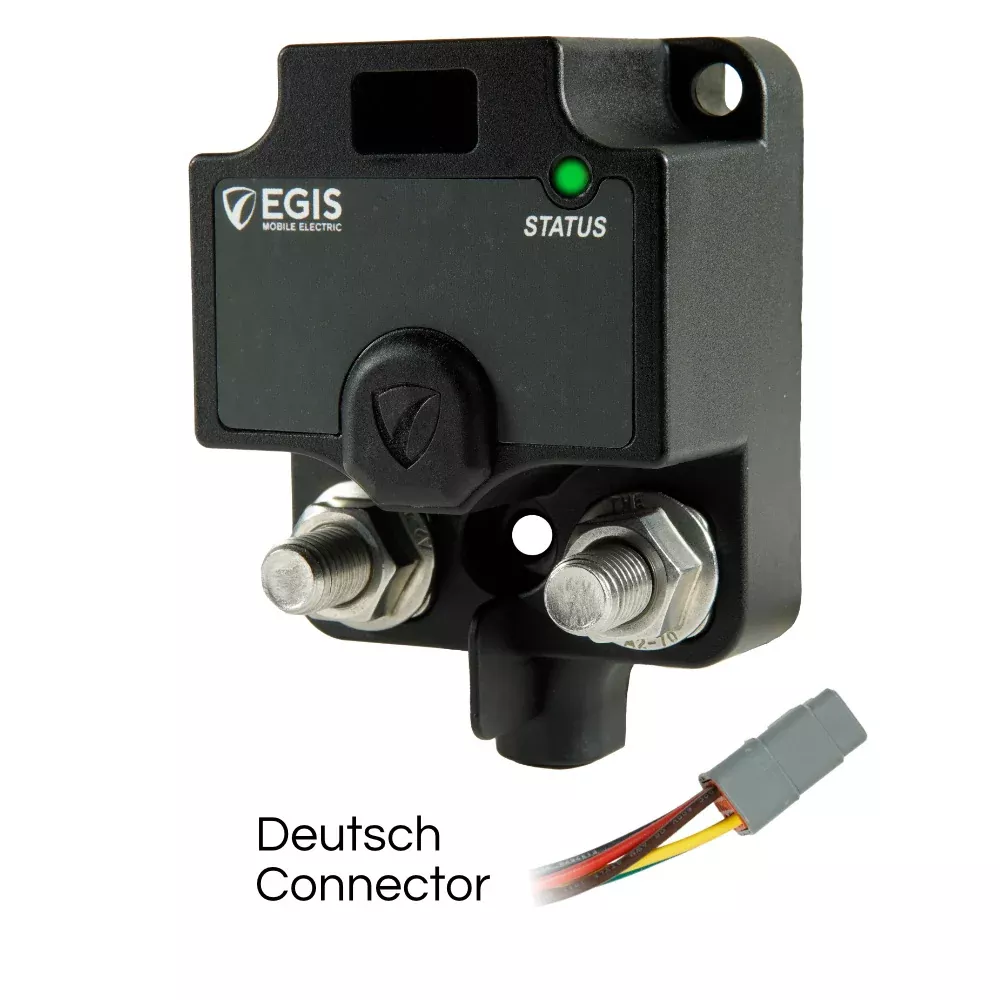

XD Flex 1 Single Relay/ACR without Knob – 6-Pin DTM Connector

Features:

• 500 Amp Continuous Capability Per Relay / Extremely Compact Footprint
• Available with or Without Intuitive Front Facing Manual Override Knob with the ability to Lock Relays ON or OFF for Servicing
• Flexible Functionality via Dip Switches, utilize each as a Relay/Battery Disconnect, Automatic Charging Relay, or Low Voltage Disconnect
• Supports Single/Multiple Engine Installations with Dual Start/Engine Isolation Inputs
• Remote ON/OFF/Auto Inputs allow forced close or open, or allow automatic operation based on Voltage Sensing
• Local and Remote LED Indicators for Each Relay

Specifications:

• Type: Electric
• Box Dimensions: 3″H x 5″W x 6″L WT: 1.1 lbs
• UPC: 850035199824
