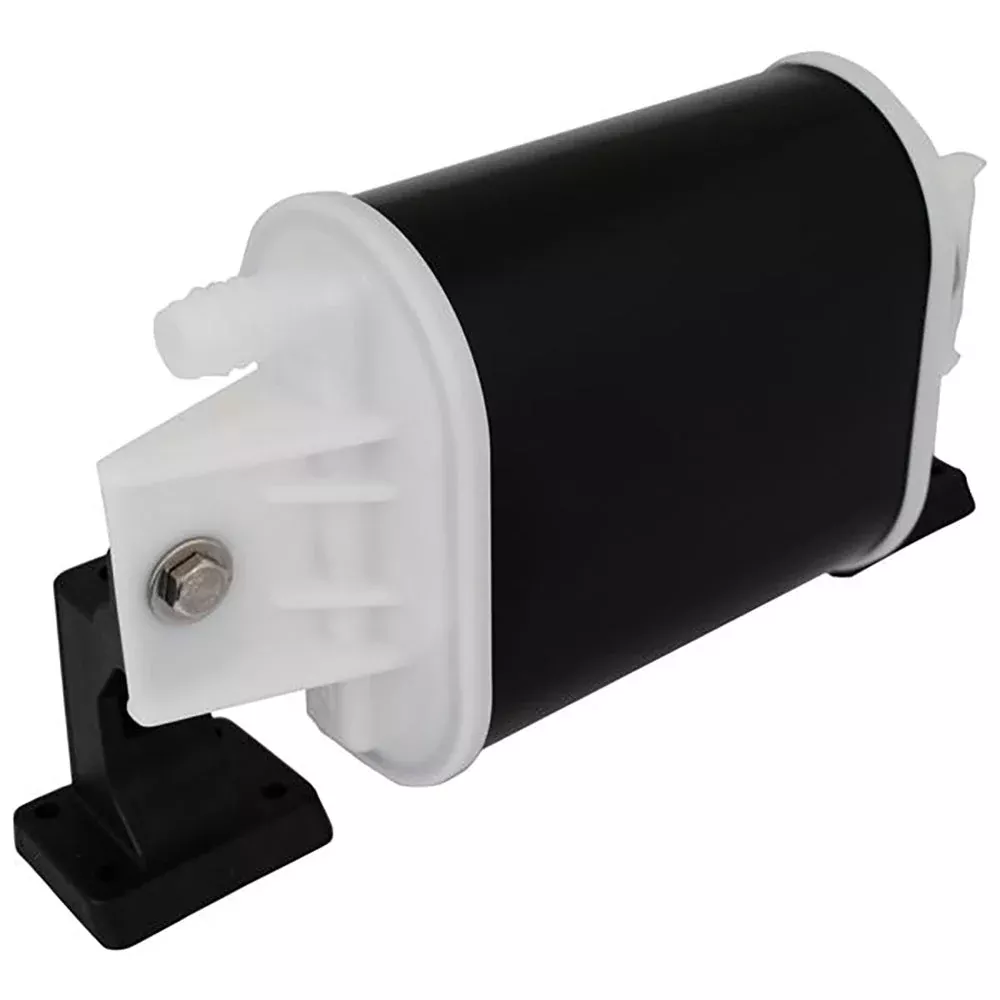

Compact Carbon Canister
Carbon canister systems utilize an engineered charcoal canister to reduce hydrocarbons entering the atmosphere. Other components of a carbon canister system are designed to ensure the tank fills to the proper level every time without spit-back or well-back. All Attwood carbon canister systems are designed to ensure liquid fuel or water does not reach the canister and are compatible with Jerry Can and marine nozzle refueling.
Features:
- This is a single pack that contains two Compact Carbon Canisters
- Brackets OEM Installed
- Low permeation shell reduces overall system emissions
- Can be mounted in any orientation using brackets provided
- EPA / CARB Certified
- Fits a 5/8″ vent hose
Specifications:
- Trailerable Vessel Capacity (EPA Rating): 70 Gallon
- Non-Trailerable Vessel Capacity (EPA Rating): 110 Gallon
- Trailerable Vessel Capacity (CARB Rating): 56 Gallon
- Non-Trailerable Vessel Capacity (CARB Rating): 110 Gallon
*Compatible with Ethanol blended fuels
Features & Specifications
- Manufacturer Part Number: 99CC045-1S
- UPC: 0022697904515
- Dimensions: 11 × 5 × 5 / 10.5 × 4.69 × 4.69
- Category: Engine Parts & Service | Accessories / Fuel | Fuel Lines/Fittings/Valves
- Fits 5/8″ vent hose
- Can be mounted in any orientation using brackets provided
- Compatible with Ethanol blended fuels
- Low permeation shell reduces overall system emissions
- Carbon Canister for Engine Compartment models feature a pre-installed composite heat-shield for easy installation
- Construction/Materials: Brackets OEM Installed
- Description: Carbin Canister, Compact Bracket, OEM Installed
- Height: 4-1/64″
- Length: 11-39/64″
- Size: 11-39/64 L x 5-13/32 W x 4-1/64″ H
- Style: Compact
- Width: 5-13/32″
